V-HLINE Series
V-HLINE Series horizontal line array is designed to meet the demand of professional rental companies and professional installers who are able to use complex and innovative sound systems.
V-HLINE, a 2-way full range loudspeaker, can be either used as single cabinet for near field sound reinforcement or multiple cabinets together as a main PA system for medium indoor or outdoor events. It can be used as a main PA system for large indoor and outdoor events with a matrix of up to 16 cabinets.
V-HLINE is very easy for mounting and combining, and is very compact design, which makes it ideal to be used as auxiliary system. When working together with V-HLINE+ LK3 vertical line array, it can also be used as stage sound reinforcement, sound compensation, front fill, delay stacks, etc.
V-HLINE system can be combined in modularization, which is suitable for multiple performance venues.

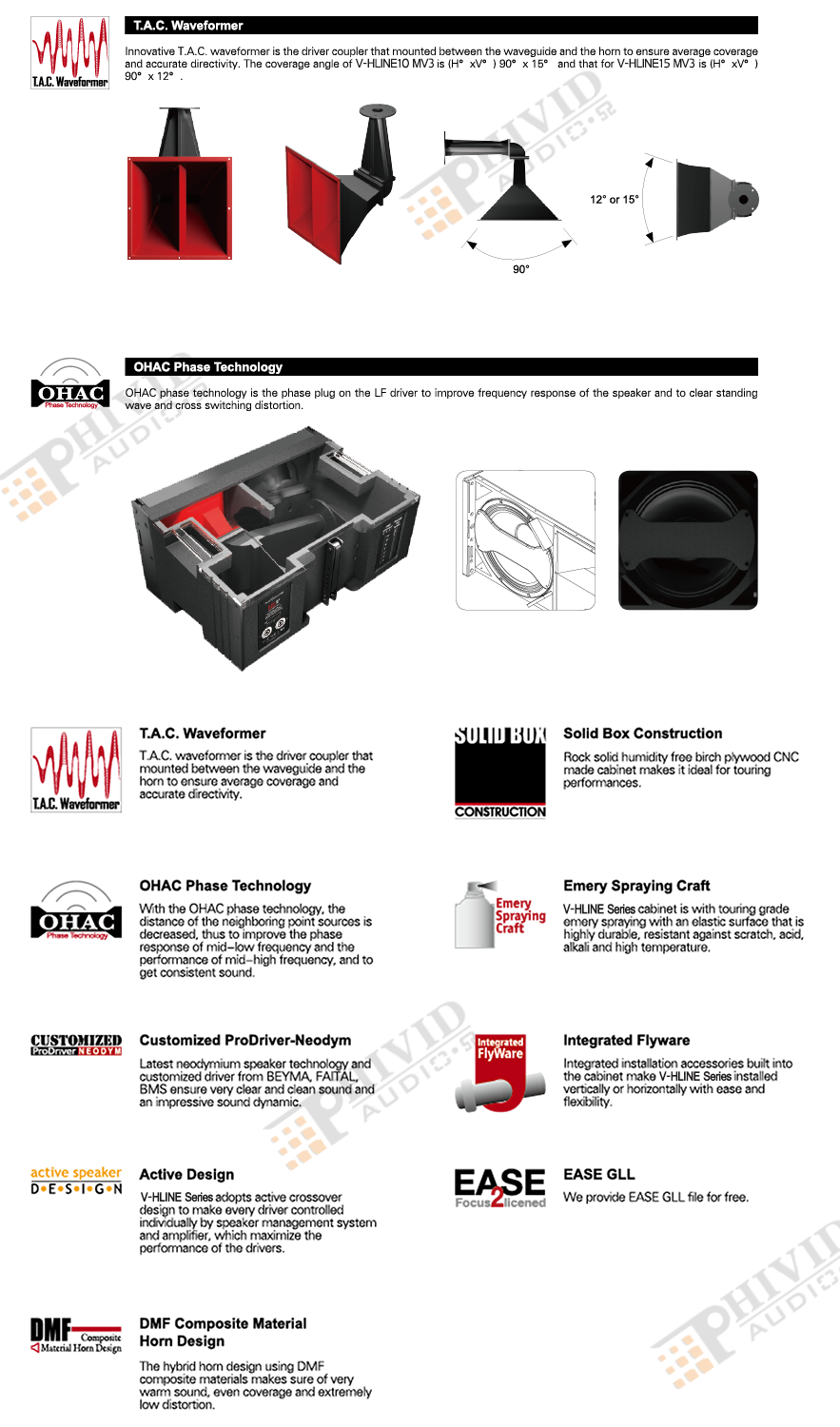

Core Technology
| V-HLINE Series | |||||||
| SPECIFICATIONS | V-HLINE10 MV3 | V-HLINE12 MV3 | V-HLINE15 | ||||
| LF | HF | LF | HF | LF | HF/MF | ||
| Powe （AES standards） |
Rated | 350W | 70W | 700W | 70W | 800W | 80/150W |
| Program | 700W | 140W | 1400W | 140W | 1600W | 160/300W | |
| Peak | 1400W | 280W | 2800W | 280W | 3200W | 320/600W | |
| Impedance | 8Ω | ||||||
| Frequency Response （-6dBanechoic chamber） |
62Hz-20KHz | 54Hz-20KHz | 47Hz-20KHz | ||||
| Directivity-6dB（H°×V°） | 30°×60° | ||||||
| Sensitivity | 99dB/1W/1M | 109dB/1W/1M | 101dB/1W/1M | 109dB/1W/1M | 101dB/1W/1M | 118dB/1W/1M | |
| Maximum Calculated SPL/1W |
Continuous | 124dB | 127dB | 129dB | 127dB | 130dB | 140dB |
| Program | 127dB | 130dB | 132dB | 130dB | 133dB | 143dB | |
| Peak | 130dB | 133dB | 135dB | 133dB | 136dB | 146dB | |
| Drivers | Customized FAITAL neodymium driver, 2.5” voice coil |
Customized BEYMA neodymium driver, 2.84”voice coil,1.4”exit |
Customized FAITAL neodymium driver, 4”voice coil |
Customized BEYMA neodymium driver, 2.84”voice coil, 1.4”exit |
Customized BEYMA neodymium driver, 4”voice coil |
Customized BMS coaxial neodymium driver,(H- 1.7” voice coil, M-3.5” voice coil ),1.4”exit |
|
| Crossover | Active Crossover | ||||||
| Cabinet | High density Russian birch plywood CNC made | ||||||
| Finish | Touring grade emery spraying | ||||||
| Connectors | 2×NLT4MP | ||||||
| Optional Accessories | Flying belt /D shackle/Flying frame/Stacking frame/Flingtcase/Durable rain bag | ||||||
| Dimensions（W×H×D） | 281×580×370mm | 331×700×437mm | 401×880×568mm | ||||
| Net Weight | 20.0Kg | 29.0Kg | 41.5Kg | ||||
| Technical Support and After-sales Service |
Global application support team,EASE GLL files | ||||||
